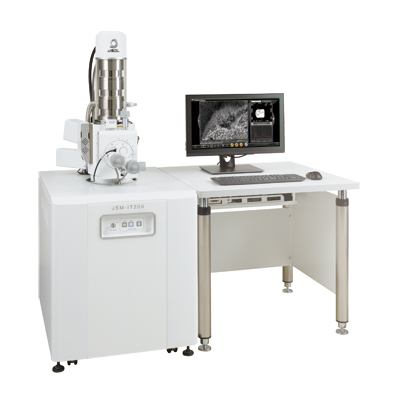

JSM-IT200 InTouchScope™ Scanning Electron Microscope

JSM-IT200 is an easy-to-use SEM focused on cost performance of high functionalities of JSM-IT500 (higher-end model) of InTouchScopeTM, with significantly higher throughput. Specimen Exchange Navi, a beginner-friendly function, offers guided operation from sample loading to area search, and SEM image observation. “Zeromag” for seamless transition from optical to SEM imaging, “Live Analysis”*2 for real time display of elemental analysis results, SMILE VIEW(TM) Lab for seamless report generation of observation and/or analysis results, etc., provide fast analysis with integrated transition from OM to SEM. Fast observation, analysis and report generation! JEOL InTouchScope™ series, the high performance analytical tool with major three functions.

Specimen Exchange Navi: Guided operation from sample introduction to observation

A step-by-step guide to sample exchange, condition setting and automatic imaging.

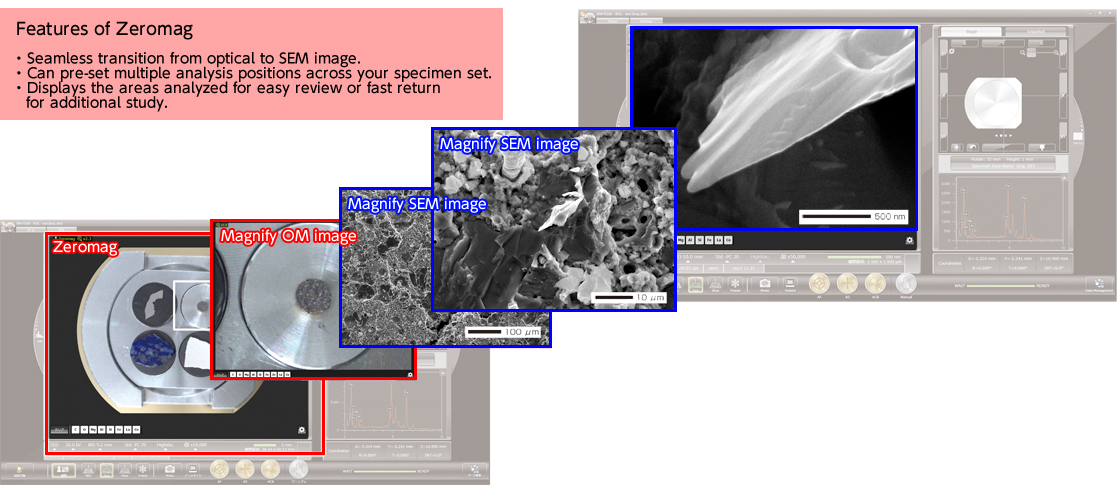

Zeromag image displayed on the Main screen

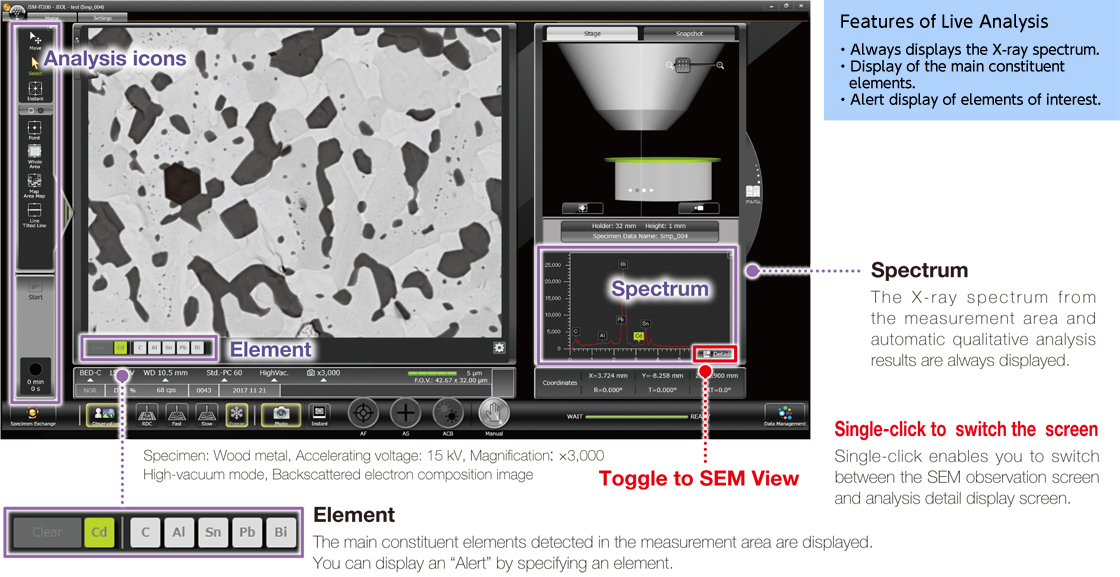

Fast analysis! "Live Analysis"*2

The characteristic X-ray spectrum from the measurement area and the main constituent elements are displayed during observation.

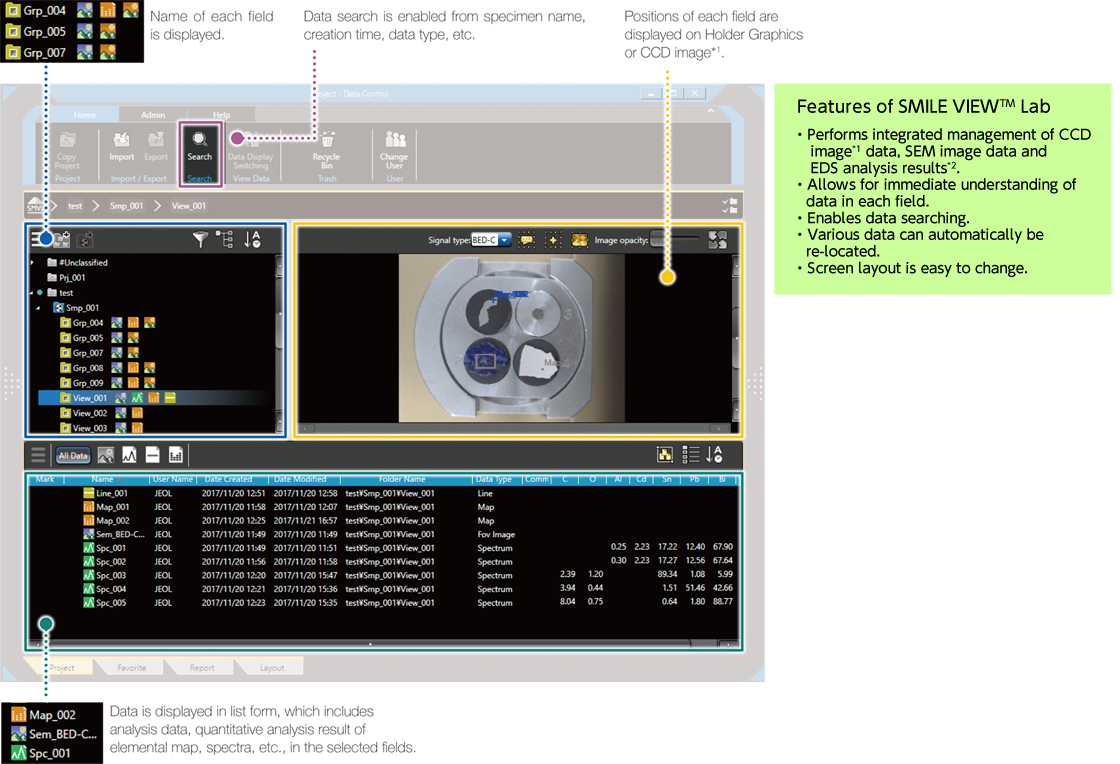

Fast report generation! SMILE VIEW™ Lab: integrated data management

Single-click of the data management button displays the Data management screen, allowing you to generate a report of all images and analysis data, as well as review or re-analyze already-acquired data.
*1 To take a CCD image, optional SNS (stage navigation system) is required.
*2 Applicable to LA (Low Vacuum & Analysis) versions.
