Advanced FT-IR Analysis for Routine, Research & Development
INVENIO Features
- Spectral range expansion from FIR to UV/VIS
- Up to 7 software controlled detectors
- Spectral resolution down to < 0.085 cm-1
- Time resolved spectroscopy down to the nanosecond timescale
- Second sample compartment for two parallel set ups
- Simultaneous FIR/MIR measurements
- Accepts any sampling accessory with quick swappable mount
- Intuitive software with guided workflows
INVENIO Extension Options
- 3 output and 2 input ports
- FT-IR imaging and microscopy
- High throughput measurements
- Protein analysis in water
- Thermogravimetric analysis
- FT-Raman
- Photoluminescence
- External sample compartments, and more!
Reliable. Efficient. Productive.
Excellent sensitivity.

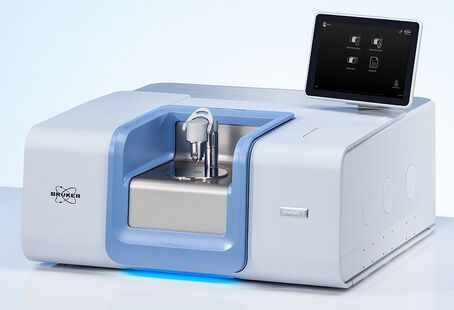

The INVENIO is a robust, 24/7 work station with features designed to enhance your productivity. Know that you can always trust your results thanks to smart software monitoring and the RockSolidTM interferometer, which is resistant to vibration and thermal effects.

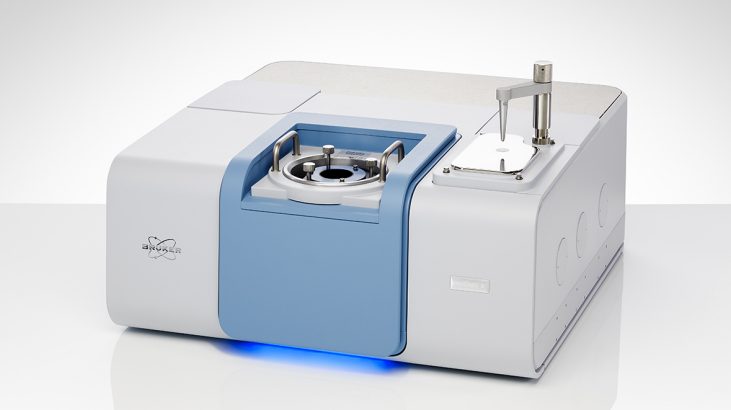

Save time and always have two experimental set ups ready with the TransitTM feature, an independent second measurement channel with its own detector for ATR or transmission measurements. The main sample compartment can accommodate numerous accessories to analyze nearly anything. Even the bulkiest accessories can be easily inserted thanks to the lock and release button on the Quicklock accessory mount.
Swapping optical components for different experiments is also easily accomplished, but uninterrupted analysis can be performed with Bruker FM which can analyze both MIR and FIR at the same time in either sample compartment without changing anything.
Quality. Precision. Functionality.

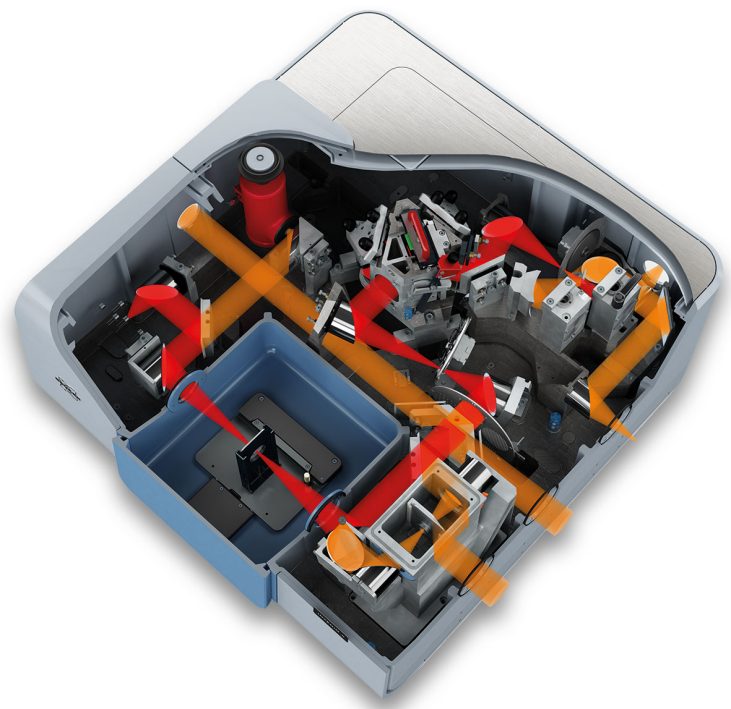

The INVENIO features a new, high quality design from the precise optics and novel beam path to the durable outer casing. You'll see every spectral detail thanks to the high signal-to-noise ratio and spectral resolution < 0.085 cm-1.
But the INVENIO doesn't just offer high spectroscopic precision, it's also highly functional. Take advantage of the DigiTectTM slot to easily insert a detector of your choice, e.g. LN2 cooled. Add up to 5 more room temperature or thermostabilized detectors with MultiTectTM, the 5-in-1 automated detector unit. Between the MutiTectTM detectors, the DigiTectTM slot, and the Transit channel, the INVENIO allows for up to seven internal, software controlled detectors.
The upgraded INTEGRALTM interferometer, with an automated three position beam splitter changer, is perfect to go alongside MultiTectTM. This allows for a fully automated, single click analysis of the entire spectral range from 28,000 cm-1 down to 15 cm-1. No need to ever manually change optical components.
Straightforward and Self Explanatory.
Operating the INVENIO is a straightforward experience for experts and beginners alike thanks to OPUS, the all-in-one software solution for vibrational spectroscopy.
Use OPUS on the optional embedded touch screen for an intuitive and streamlined measurement experience, or use it on an external PC to take advantage of more features like advanced method creation tools
Both versions support users of all skill levels with vast spectral libraries and the ability to create guided workflows for standard tasks.
Requirements change, INVENIO adapts.
The INVENIO is designed to be customized to perfectly suit your analytical needs. But sometimes those needs evolve and therefore the demands of the instrument change. That's why all core features of the INVENIO can be easily upgraded in the field at any time.
