3D Ceramic Printing

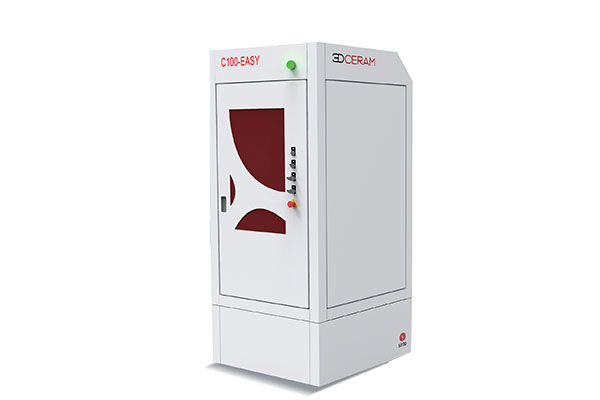

C100 EASY
To develop & prototype
Scale up on C3600 ULTIMATE

  • User friendly
  • Open parameters
  • Stereolithography laser
  • Free link support technology
  • Controlled quantity of printed ceramic slurry
  • Accessible for persons with reduced mobility
  • Easy scale up to C3600 (600 x 600 x 300 mm)
  • Optionnal : start a printing run with only 100 mL of ceramic formulation

TECHNICAL DATAS

Dimensions Approx. ………………………………… 940 x 1060 x 1826 mm (WxDxH)
Building platform size ………………………………. 100 x 100 x 150 mm
Weight Approx. …………………………………....... 750 kg
Electrical requirements ……………………………... 220-240 VAC / 50Hz
Electric power ………………………………………… 2 kW
Light source ……………………………………………UV Laser
Laser spot diameter ………………………………….. ~ 50 μm
UV Wavelength ……………………………………….. 405 nm
Layer thickness ………………………………………. 0.010 – 0.125 mm
Optimal room temperature …………………………... 20-25°C
Maximum room temperature variation ……….......... 1°C/hour
Relative humidity………………………………………. 50%
Compressed air ……………………………………….. 6 bars dry
Hybrid option …………………………………………... At a later stage
