The minispec Hydrogen Content in Hydrocarbons (TD-NMR analysis)

The minispec Hydrogen  Content in Hydrocarbons (TD-NMR analysis)

Hydrogen content at the endpoint is one of the specifications that needs to be met for products like jet fuel and diesel.

 The minispec Hydrogen Content in Hydrocarbons


New ASTM*  D 7171: International Standard Method based on Pulsed TD-NMR

TD-NMR analysis of hydrogen content in hydrocarbons, like diesel or jet fuel.


Hydrogen content by TD-NMR

  • Rapid, non-destructive, solvent free QC/QA
  • measurementAll Official International Standard Methods supported (ASTM D 7171, ASTM D 3701 and ASTM D 4808)
  • Easy calibration using a small number of commercially available compounds
  • Minimum sample preparation
  • High Return on Investment
  • Excellent reproducibility
  • Dedicated analyzer with perfectly adapted software

*ASTM: American Society for Testing and Materials


Economics Around Percent Hydrogen Content Analysis

       Refining of hydrocarbons and vegetable oils typically includes hydrogenation. In a refinery hydrogen consumption is a major cost issue, and percent hydrogen content is used as an important indicator of refining progress. Hydrogen content at the endpoint is one of the specifications that needs to be met for products like jet fuel and diesel.

       An accurate and reliable analytical method is required in order to demonstrate compliance to official specifications and to keep hydrogen use as low as possible. The minispec NMR method meets accuracy, precision and speed demands for process control. Operation of the minispec does not require skilled personnel. Instrument design is very robust, requiring little service


Hydrogen Content Analysis – Other Reasons?

  • The higher the hydrogen content, the better the petrol combustion, the higher the quality.
  • Soot deposits, exhaust smoke, thermal radiation increase with decreasing hydrogen content.


minispec Calibration

Two calibration methods are feasible:

  • with pure hydrocarbons – like dodecane – as available from suppliers of chemicals
  • with samples and reference values as sup- plied by the user


Sample Handling and Tube Sizes
       Two tube sizes are typically in use for this method: either 18 mm or 40 mm diameter tubes. PTFE plugs with rod are available, avoid- ing evaporation of the sample.

       Mostly metal block thermostats are in use for sample pre-tempering, requiring only electricity, even for permanent operation.


Typical Measurement Time
       The samples show very strong NMR signals. Thus a very good signal to noise ratio is obtained, resulting in a short measurement time of typically one minute only.


Further minispec Applications in Petrochemical Industry

  • Total hydrogen content in Coal
  • Oil Content Determination in Wax / Paraffin
  • Oil Content Determination in Oil Shale and Oil Sands
  • Viscosity Determinations of Oils
  • Relaxation Time Analysis on Rock Cores


International Methods

       The International Standard methods recommend to calibrate with pure hydrocarbons. The latest ASTM D 7171 method contains a list of recommended calibration substances with corresponding hydrogen content values.



According to ASTM pure hydro-
carbons can be
used for
instrument calibration.


Percent Hydrogen Calculation
       The hydrogen content of compounds can also be directly calculated, as the chemical formula is well-known and the purity of the substances is very high.

List of International Methods

  • ASTM D 7171 (released 2005, based on pulsed NMR) for Middle Distillate Petroleum Products
  • ASTM D 4808 (Light and Middle Distillates, Gas Oils and Residua)
  • ASTM D 3701 (Aviation Turbine Fuels)

       ASTM methods D 3701 and D 4808 can be fulfilled and even exceeded by replacing the original cw-NMR instruments with the pulsed NMR minispec. The pulsed NMR approach is faster, more sensitive and more accurate, also allowing more applications.



All types of hydrocarbons can be examined,
from light distillates
up to residua, gas oils
as well as aviation turbine fuels.

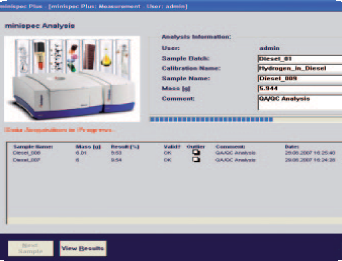

Dedicated Software ensures fast and reproducible
results of your hydrogen content measurements.


Typical system configuration(s):

Jet fuel or Diesel (homogenous fractions / low viscosity liquids):

New mq-one Hydrogen Analyzer

  • Sample diameter: 18 mm
  • Dedicated to hydrogen content application

minispec mq20

  • Sample diameter: 18 mm
  • Hydrogen content application
  • More applications, see 'Further minispecApplications in Petro - chemical Industry'

Heavy Fractions / Distillates, (non-homogenous samples, viscose liquids and more):

minispec mq10

  • Sample diameter: 40 mm
  • Hydrogen content application
  • More applications, see 'Further minispec Applications in Petro- chemical Industry'

Remark: For more heavy fraction, sometimes tempering and measuring the samples at higher temperature is reasonable, like for instance at 50 ?C. For this application, variable temperature probes are available.

The new mq-one Analyzer comes in a package with:

  • minispec Plus Software
  • 18 mm Ø glass tubes
  • 18 mm Ø PTFE plugs
  • Sample Preparation Block

minispec Plus Software for mq-one:

  • User friendly, multi-lingual and 21CFRPart11 compliant software
  • User rights for administration (full access), calibration & measurement and measurement only
  • Pre-defined method for hydrogen content determination


Credit: Bruker
