The job of servicing HVAC systems is now a lot faster and easier with Testo’s new Smart Probes.
The First Family of Smart instruments is a collection of probes that work with your smart phone or tablet to monitor and store measurement readings. The free App allows you to quickly and easily calculate performance and seamlessly document results in reports or data sheets, which you can store or send via email or text.
The testo Smart Probes App: One App. Eight Instruments. Many advantages.
The First Family of Smart instruments is a collection of probes that work with your smart phone or tablet to monitor and store measurement readings. The free App allows you to quickly and easily calculate performance and seamlessly document results in reports or data sheets, which you can store or send via email or text.
- Test air conditioning charge without hoses—or wires
- Balance multi-outlet ventilation systems simultaneously
- Measure system air flow and dewpoint
- Perform difficult calculations automatically in the free app
- Much, much more!
The testo Smart Probes App: One App. Eight Instruments. Many advantages.
- Measurement data is transmitted to the convenient and powerful testo Smart Probes App in your smart device
- Automatic calculations make it a snap
- The operation and display of the probes are communicated via Bluetooth to your smart device
- Create custom reports including added photos and comments

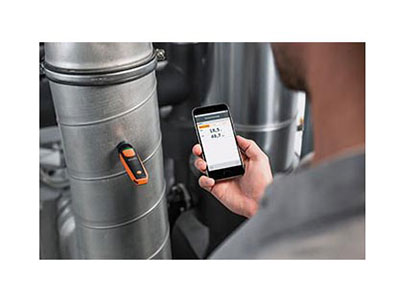

Measure Wirelessly
Control and display measurement values remotely
by App – even at several feet distance from the measuring instrument.
Control and display measurement values remotely
by App – even at several feet distance from the measuring instrument.
Display of Several Measuring Instruments Simultaneously
The display of up to six Smart Probes simultaneously allows for
multiple tests, reports, and automatic calculations.
The display of up to six Smart Probes simultaneously allows for
multiple tests, reports, and automatic calculations.

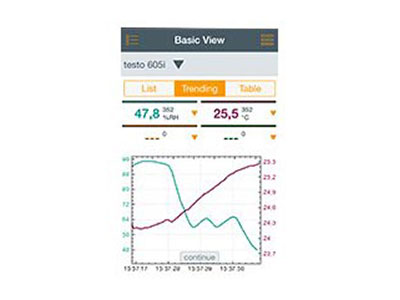

Multiple Measurement Views
The App instantly shows measurement value changes as a graph or table.
The App instantly shows measurement value changes as a graph or table.

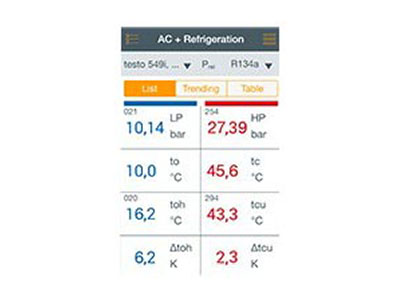

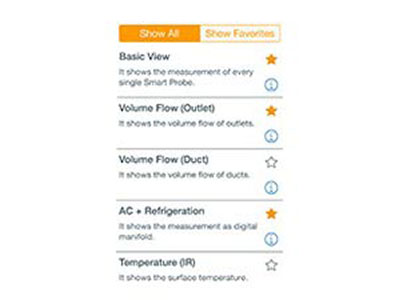

Pre-loaded for Numerous Applications
Multiple measurement menus and calculations are already stored in the App:
Automatic calculation of evaporation and condensation temperatures, superheat and sub-cooling; volume flow measurement in ducts/at outlets; and non-contact temperature measurement by infrared with fast image documentation incl. measurement values and measurement spot marking.
Multiple measurement menus and calculations are already stored in the App:
Automatic calculation of evaporation and condensation temperatures, superheat and sub-cooling; volume flow measurement in ducts/at outlets; and non-contact temperature measurement by infrared with fast image documentation incl. measurement values and measurement spot marking.

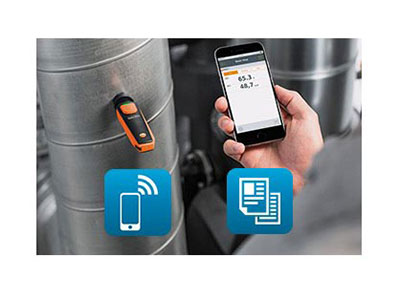

Clever Documentation and Data Sharing
Measurement data reports can be completed with photos, and sent out as a PDF or Excel file, saving you hours of work.
Measurement data reports can be completed with photos, and sent out as a PDF or Excel file, saving you hours of work.

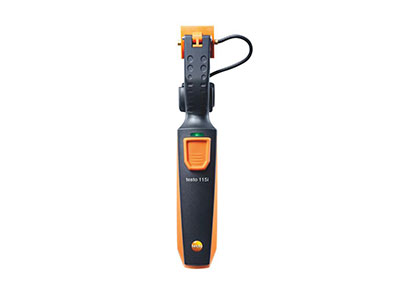

testo 115i: Bluetooth Clamp thermometer
- Measures temperature of pipes in heatingand cooling systems
- Use with 549i Refrigeration Pressure Probe to calculate superheat and sub-cooling
- Quickly identify temperature changes by monitoring real-time trending and data logging
- 115i NTC temperature sensor is more accurate and stable than thermocouples
- Measuring range -40 to 302 °F
- Clamp opening diameter of .25 to 1.5 in.
- Measuring Units °F, °C
- Measures temperature of pipes in heatingand cooling systems
- Use with 549i Refrigeration Pressure Probe to calculate superheat and sub-cooling
- Quickly identify temperature changes by monitoring real-time trending and data logging
- 115i NTC temperature sensor is more accurate and stable than thermocouples
- Measuring range -40 to 302 °F
- Clamp opening diameter of .25 to 1.5 in.
- Measuring Units °F, °C

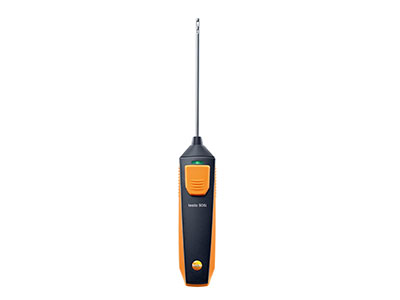

testo 905i: Bluetooth Thermometer
- Quickly and accurately measures air temperature in rooms, ducts, registers, and outlets
- Fast acting temperature probe quickly tracks changes and shows trends on a graphic display
- Measuring range -58 to 302 °F
- Measuring Units °F, °C
- Quickly and accurately measures air temperature in rooms, ducts, registers, and outlets
- Fast acting temperature probe quickly tracks changes and shows trends on a graphic display
- Measuring range -58 to 302 °F
- Measuring Units °F, °C

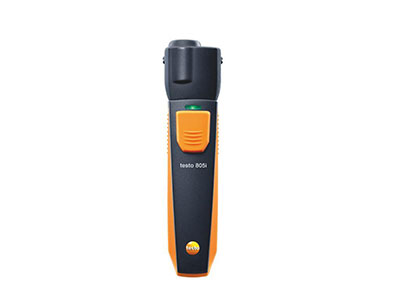

testo 805i: Bluetooth IR thermometer
- Measures non-contact temperature
- Optic target ratio (10:1)
- Measurement area indicated by circular laser pattern assures accurate assessments
- Photograph objects with smart device, capturing measurement marker and emperature values for reference and reporting
- Optics 10:1, measuring range -22 to 482 °F
- Measuring Units °F, °C
- Measures non-contact temperature
- Optic target ratio (10:1)
- Measurement area indicated by circular laser pattern assures accurate assessments
- Photograph objects with smart device, capturing measurement marker and emperature values for reference and reporting
- Optics 10:1, measuring range -22 to 482 °F
- Measuring Units °F, °C

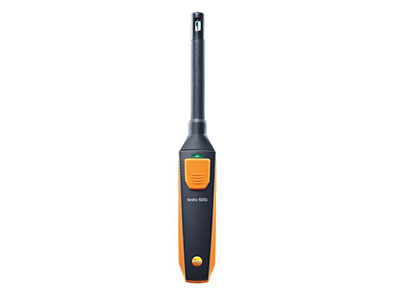

testo 605i: Bluetooth Thermohygrometer
- Quickly and accurately measures relative humidity and temperature in rooms, ducts, and chambers
- Automatically calculates dewpoint & wetbulb temperature
- Small diameter probe is ideal for in-duct measurements
- Measuring range: 0 to 100 %RH;
- 4 to 140 °F
- Measuring Units °F, °C, %rF / %RH, °Ftd, °Ctd, wetbulb °F, wetbulb °C
- Quickly and accurately measures relative humidity and temperature in rooms, ducts, and chambers
- Automatically calculates dewpoint & wetbulb temperature
- Small diameter probe is ideal for in-duct measurements
- Measuring range: 0 to 100 %RH;
- 4 to 140 °F
- Measuring Units °F, °C, %rF / %RH, °Ftd, °Ctd, wetbulb °F, wetbulb °C

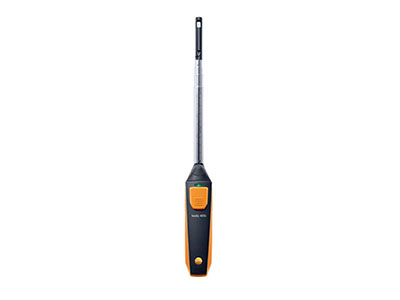

testo 405i: Bluetooth Thermal anemometer
- Measures air velocity, volume flow, and temperature
- Measures in-duct air flow and automatically calculates volume flow
- Small dia. (<0.5”) and 15” telescopic shaft length is ideal for in-duct averaging and timed traverse
- Perform air duct leakage tests
- Measuring range 0 to 6,000 fpm and -4 to 140 °F
- Measuring Units °F, °C, fpm, m/s, cfm, m3/h, l/s
- Measures air velocity, volume flow, and temperature
- Measures in-duct air flow and automatically calculates volume flow
- Small dia. (<0.5”) and 15” telescopic shaft length is ideal for in-duct averaging and timed traverse
- Perform air duct leakage tests
- Measuring range 0 to 6,000 fpm and -4 to 140 °F
- Measuring Units °F, °C, fpm, m/s, cfm, m3/h, l/s

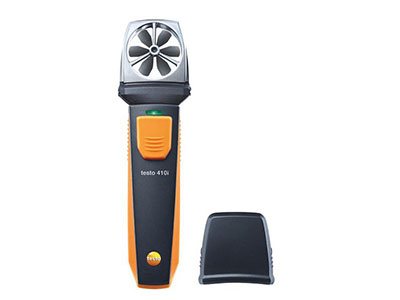

testo 410i: Bluetooth Vane anemometer
- Measures air velocity, volume flow, and temperature with no air density correction needed
- Measures air flow at registers and automatically calculates volume flow
- Measure volume flow at several outlets simultaneously to adjust system balance
- Timed/multipoint averaging
- Measuring range 0 to 6,000 fpm and -4 to 140 °F
- Measuring Units °F, °C, fpm, m/s, cfm, m3/h, l/s
- Measures air velocity, volume flow, and temperature with no air density correction needed
- Measures air flow at registers and automatically calculates volume flow
- Measure volume flow at several outlets simultaneously to adjust system balance
- Timed/multipoint averaging
- Measuring range 0 to 6,000 fpm and -4 to 140 °F
- Measuring Units °F, °C, fpm, m/s, cfm, m3/h, l/s

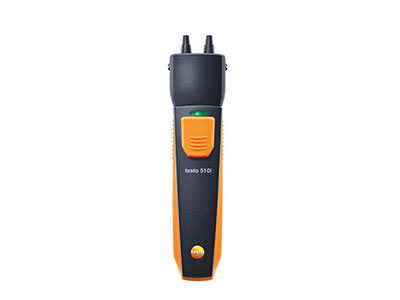

testo 510i: Bluetooth Differential pressure manometer
- Differential pressure (manometer) measures static pressure, air flow, and volume flow (with Pitot tube not incl.)
- Measures manifold pressure and pressure drop across filters and coils
- Measurement menu in App includes pressure drop alarms
- Easy configuration and calculations for volume flow (enter pitot tube factor and dimensions easily)
- Measuring range -60 to 60 inWC
- Measuring Units mbar, hPa, Pa, mmHg,inHg
- Differential pressure (manometer) measures static pressure, air flow, and volume flow (with Pitot tube not incl.)
- Measures manifold pressure and pressure drop across filters and coils
- Measurement menu in App includes pressure drop alarms
- Easy configuration and calculations for volume flow (enter pitot tube factor and dimensions easily)
- Measuring range -60 to 60 inWC
- Measuring Units mbar, hPa, Pa, mmHg,inHg
testo 549i: Bluetooth high-pressure probe
- Measures high-side or low-side refrigerant pressure (or both simultaneously with 2 probes) in AC/refrigeration systems
- No hoses required! Clean, simple, accurate
- Low-loss refrigerant pressure testing!
- Use with 115i pipe-clamp temp. probes for automatic superheat / sub-cooling calculations
- Measuring range -14 to 870 psi
- Measuring Units bar, psi, MPa, kPa
- Measures high-side or low-side refrigerant pressure (or both simultaneously with 2 probes) in AC/refrigeration systems
- No hoses required! Clean, simple, accurate
- Low-loss refrigerant pressure testing!
- Use with 115i pipe-clamp temp. probes for automatic superheat / sub-cooling calculations
- Measuring range -14 to 870 psi
- Measuring Units bar, psi, MPa, kPa
