High Speed Cameras

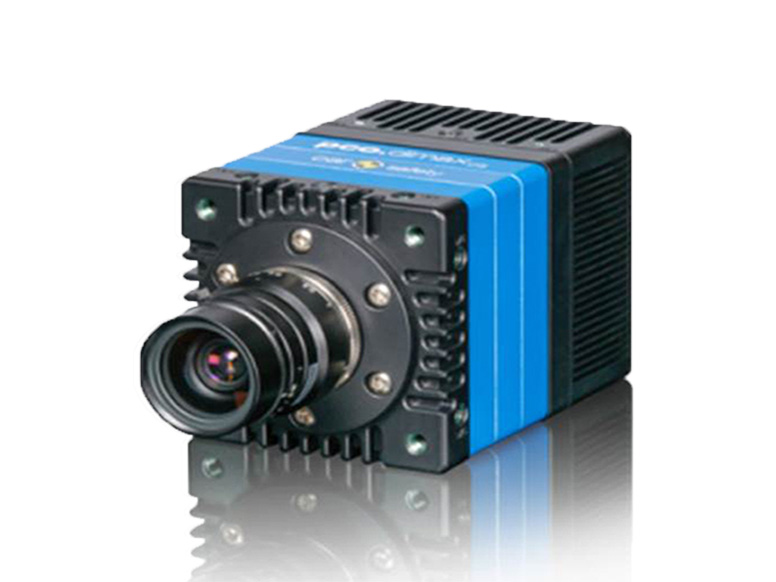

The pco.dimax CS camera is specially designed for all applications centered around car safety testing involving onboard, offboard and sled testing.
A unique capability of all pco.dimax systems is the built-in automatic image calibration that requires no user intervention. The small, lightweight and ruggedized form factor allows for mounting in a multitude of positions. A quick-change lens adapter for popular mounts such as C, F and EF provides the highest test site flexibility.

For on-site ease of viewing, an HD-SDI video output and automated lens control are included. With secure synchronization in multi-camera environments, the pco.dimax CS will provide crisp, brilliant color images in any challenging car safety testing situation.

Key Features

• 1500 fps @ 2.8 MPix resolution
• 2000 fps @ Full HD resolution
• 3000 fps @ 1.3 MPix resolution
• high-g ruggedized body (150 G for 11ms)
• secure trigger & sync modes
• excellent light sensitivity
• quick-change lens adapter
• automatic image calibration
• HD-SDI output
• integrated lens control

Areas of application

• car safety testing
• airbag behavior analysis
• automotive component testing
• crash & sledge test
• super slow motion movie clips
• short time physics
• spray analysis
• hyper velocity impact studies
• material testing
• tensile tests
• airbag inflation
• fast flow visualization
• spray imaging
• hydrodynamics
• fuel injection
• sparks in electronical switches
• combustions imaging
• fast events in nature and industry
