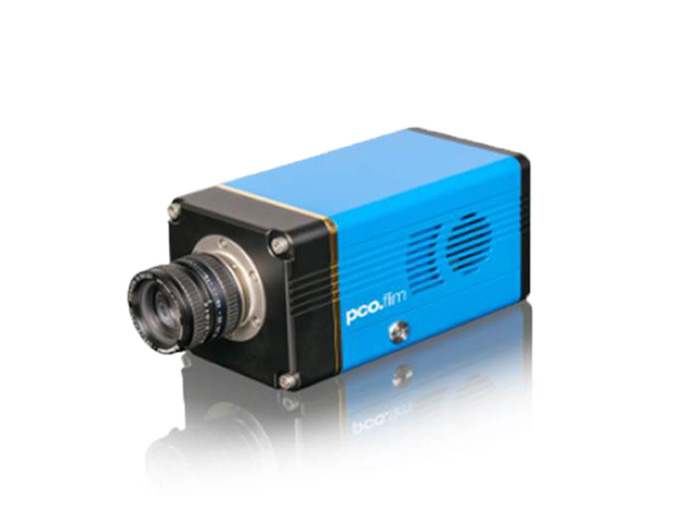

The pco.flim camera system is the first luminescence lifetime imaging camera using a two tap CMOS image sensor. The camera can internally generate a wide range of frequencies and will also accept external modulation signals within a limited range of frequencies.
It features a variety of trigger input and output signals for easy system integration. Special software provides direct measurements and lifetime analysis.
Key Features
It features a variety of trigger input and output signals for easy system integration. Special software provides direct measurements and lifetime analysis.
Key Features
- 100ps - 100µs lifetimes measurable
- 5kHz - 40MHz modulation frequencies
- 500kHz – 40MHz external modulation signals
- modulation signal shape sinusoidal / rectangular
- 1008 x 1008 pixel resolution
- frequency domain FLIM
- USB 3.0 interface
- 39% quantum efficiency
- 1000:1 dynamic range
- 45 e- rms readout noise
- 90 fps frame rate (2 tap readout)
- 10 ns to 10 s selectable exposure times
- vibration-free water cooling
- special software for measurement and analysis
Areas of application
- Fluorescence Lifetime Imaging (FLIM)
- Phosphorescence Lifetime Imaging (PLIM)
- FRET measurements with FLIM
- Pressure Sensitive Paint (PSP)
- Temperature Sensitive Paint (TSP)
- Optical chemical sensing
