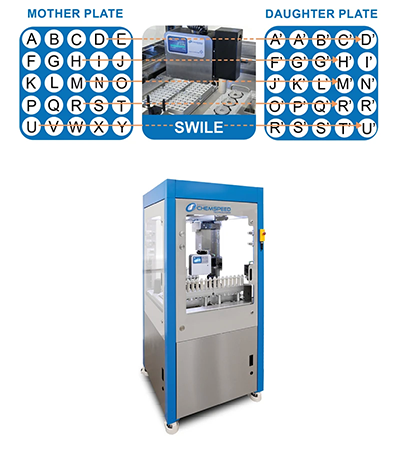

Lab Automation Platform: FLEX SWILE

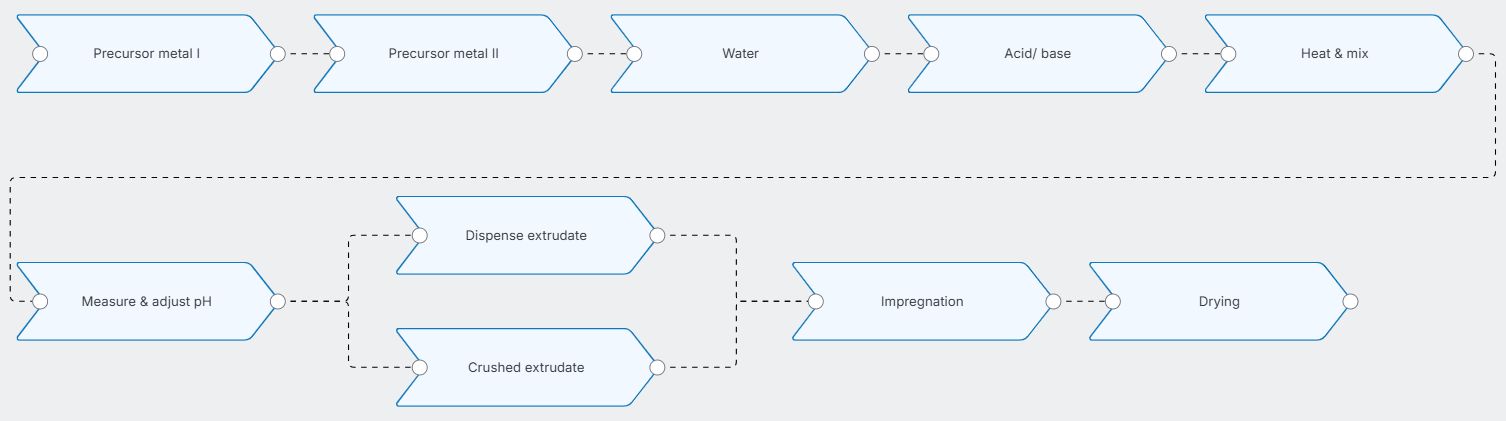

The SWILE technology provides fully automated, true one-to-one gravimetric "pick & decision dispense" of solid compounds (mother-to-daughter). The scheme at the bottom of this page displays the simplified SWILE workflow including the precision "pick & decision dispense" step. The technology backbone is based on Chemspeed’s proprietary overhead gravimetric dispensing tool design in combination with a second analytical on-deck-balance.

In order to exclude any risk of cross-contamination disposable glass tips are used which are stored and provided by the automated SWIN dispenser. The SWINS are available in different sizes (diameter) and can be adjusted according to the desired target amount to be dispensed. Additionally, a tilt / shake rack is used to loosening up and titling the powder prior to pick-up.

• Revolutionary accuracy & precision due to decision dispensing
• Dispensing range from 100’s μg to about 5 mg with +/- 10 μg resolution
• No cross-contamination
• No dead volume
• Unattended operation
• Fully inert (glass)

• Proprietary robotic tool exchange interface.
• Ventilated hood for safety as well as conditioned operation and trolley.
• Optimized footprint (3x3 ft, 90x90 cm) versus capacity - all while reducing costs and maximizing return on investment.
• SWILE Robotic Tool can be combined with other tools to accommodate multiple workflows.
• On-deck balance, tilt / shake rack, barcode reader, multigripper.
• Exchangeable robotic tools to accommodate multiple workflows.
• AUTOSUITE SOFTWARE - drag & drop experimentation with easy interface to data analysis.
• Interface to e.g. DOE, ML, AI, LIMS, ELN, ERP
