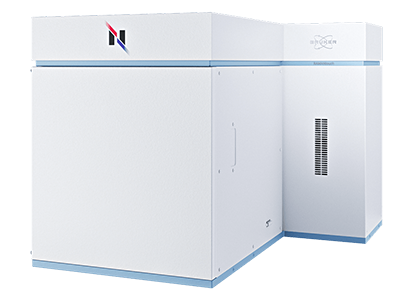

RAMANtouch
A confocal Raman imaging microscope with unsurpassed speed and accuracy.

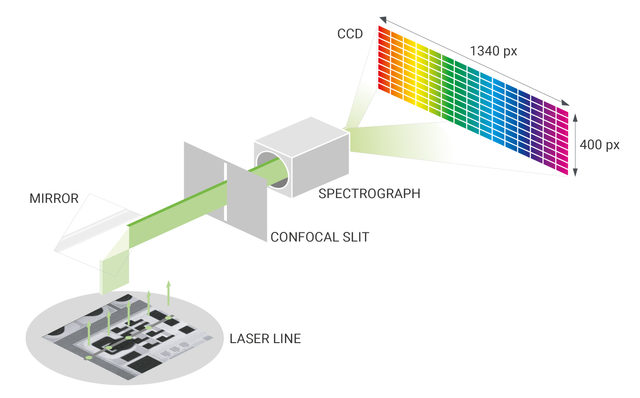

Nanophoton's tech uses line-shaped laser illumination and a two-dimensional CCD to capture 400 spectra in one exposure. With laser scanning via galvanometer scanners, RAMANtouch achieves rapid and accurate Raman imaging of hundreds of thousands of pixels within minutes - no EMCCD required.
True Raman imaging is finally here.
The RAMANtouch is a completely new approach compared to traditional Raman microscopes - and that's why it achieves the impossible. Maximum imaging speed without any loss of spectral quality or spatial resolution.
The RAMANtouch offers:
- Ultra high-speed Raman imaging
- High spectral and spatial resolution
- Completely automated hardware
- Powerful analysis for 2D/3D Raman images
- Auto-calibration and auto-alignment
Laser scanning via galvanometers explained.
The use of a galvanometric mirror is an innovative scanning method in which a laser beam can freely scan the point under the objective lens - without having to move the sample stage! In terms of both precision and speed, it far surpasses conventional "table scanning".
In addition, the laser beam is incident perpendicular to the observation plane, regardless of whether you are in the center of the field of view or at the edge. This allows for special measurement modes:
- Laser Line Scanning
Scan the surface of your sample with high spectral and spatial resolution at highest speed and maximum accuracy. - Point Scanning
Create quick overview images of a measurement area by only measuring those parts that actually show a contrast in their Raman spectra. - AreaFlash measurement
By "flashing" the Raman laser line across the FOV, an average spectrum of the complete area is created. This allows ultra-fast measurements of large areas.
Maximum Raman performance in any measurement mode.
Laser Line Mode
- Ultra-fast Raman imaging by line illumination
- Homogeneous and deformation-free laser line over the entire field-of-view
- No emCCD needed
Laser Point Mode
- Perfect focus spot even at the edge of the field-of-view
- Hundreds times faster than motorized stage
- Up to 10 nm positioning accuracy
Exceptional 3D Raman imaging capabilities.
Confocal optics allow non-destructive Raman analysis inside a sample. This way, 3D Raman images of transparent samples can be created. By using line illumination and the high-precision stage of the RAMANtouch, 3D Raman images are created in unmatched speed and quality to provide insight into a sample's internal structure and component distribution.
Video example:
- Raman detects inside the transparent fiber
- Sample: Bi-component PE (cladding) and PET (core) fiber
- Acquisition time: 20~30 min
- Yellow dots: TiO2
Peak Raman imaging resolution.

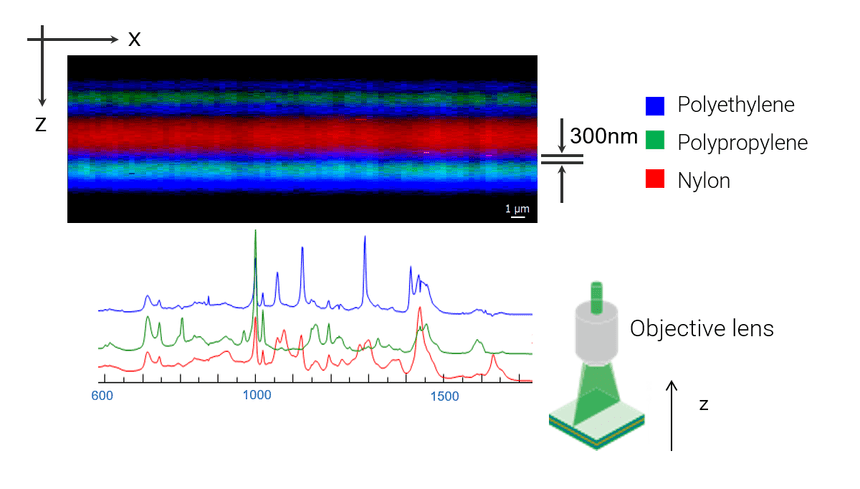

Depth profiling Raman imaging in the XZ plane enables non-destructive analysis, such as examining multilayer films. Utilizing an oil-immersion objective lens significantly enhances spatial resolution, allowing for the detection of ultra-thin layers as fine as 250 nm.
Access the nanometer domain.

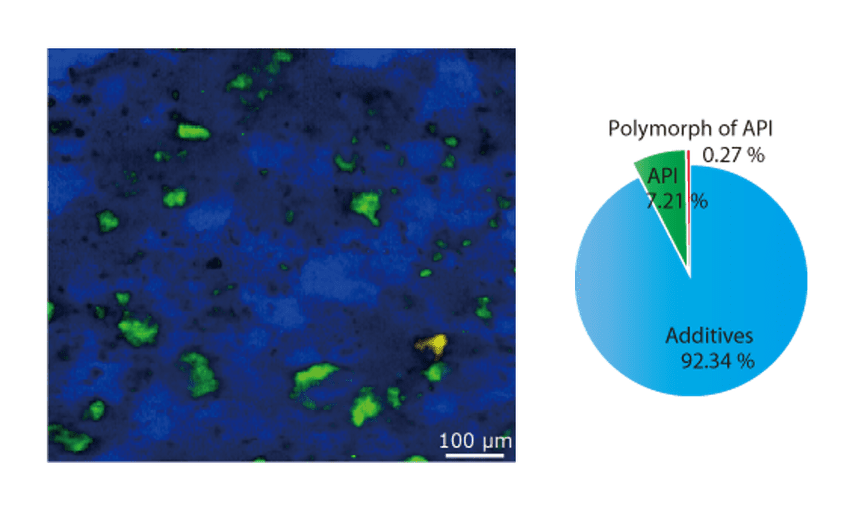

Raman microscopy offers essential insights into the identification of both organic and inorganic compounds, as well as crystal polymorphism. Unlike IR microscopy, Raman boasts advantages such as sub-micrometer spatial resolution and the capability to analyze samples in aqueous environments.
